XGS 2008 Client

I decided to re-write the XGS Client or "Front End" application that was originally written in VB6 by Steve Mentzer and available on his web site. I'm doing this one in VB 2008 and hope it will be an improvement on the original. Now for some screen shots...

XGS 2008 Main Window This is the main window. Looks alot like the toolbar down the left side of Steve's VB6 client. There's a couple of new icons for "Load Settings" & "Save Settings".

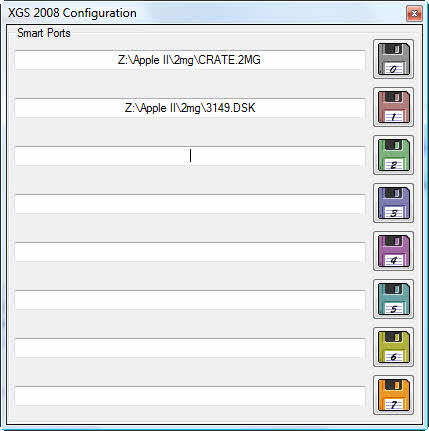

XGS 2008 Smart Port Config Screen Should be self-explanatory. Click the disk, choose an image file.







XGS 2008 Slots Config Screen

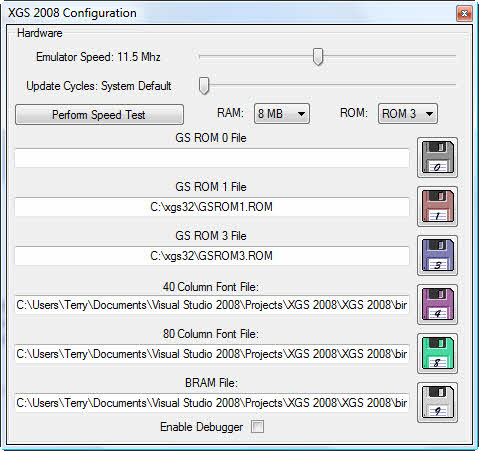

XGS 2008 Hardware Config Screen Here's the hardware config screen. Not sure if XGS can run ROM0 files, or if they even exist, but I included it anyway.

























Below are the remaining config screens. All should be recognizable as I attempted to duplicate the VB6 client screens.

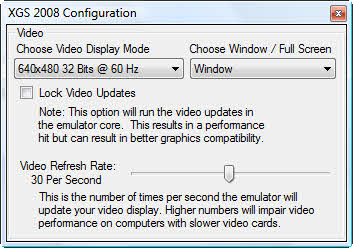

XGS 2008 Video Config ScreenXGS 2008 Audio Config ScreenXGS 2008 Joystick Config Screen



Here are the two new screens. These are for saving and loading different setup configurations. I plan on having the program load the last used configuration on startup.

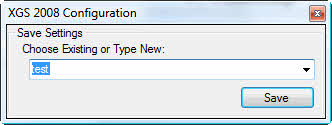

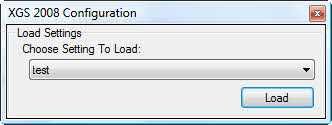

XGS 2008 Save Settings ScreenXGS 2008 Load Settings Screen

I also plan on having a status bar at the bottom of the main screen that will display the currently loaded settings and emulator speed. I haven't gotten it finished, but i'm almost there. Another week or so and I should be done.
